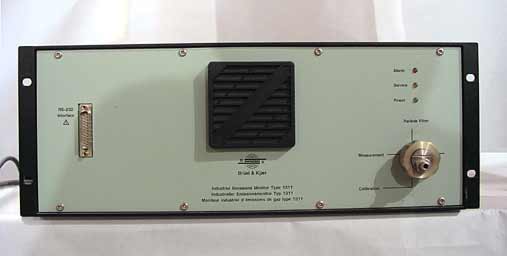

Bruel & Kjaer Industrial Emissions Monitor -
Model 1311


Overview

With less than 35 combined hours of service, this unit is virtually brand new. Comes complete with original documentation binder and PC configuration software.

From the User's Manual:

"This unit simultaneously measures concentrations of CO2, O2, and a user-specified hydrocarbon in a gas flow. The concentration of each gas is expressed as a volume percentage referenced to dry gas conditions. Concentration of hydrocarbon can also be expressed in mg/m3.

The monitor provides fast and accurate measurement results over wide concentrations. It comes complete with PC software that allows you to configure and calibrate the monitor prior to measuring. The software also offers the option of displaying data graphically while measurements are being made, and storing the data to PC disk for later offline examination."

Specifications*

Monitors(Gases):

 Hydrocarbons, O2, CO2
Measurement Techniques:
 CO2 & Hydrocarbons: photoacoustic infrared spectroscopy
O2: magnetoacoustic spectroscopy
Gas Monitoring:
 Sample Gas Flow Rate: 130 ml/min
O2 Reference Flow Rate: 35 ml/min
Hydrocarbons (ref. methane):
 Range: 0 to 10 vol%
Detection Limit (2 X RMS noise): 20 ppm (1s averaging)
Accuracy: better than +/(0.004 vol%+3% of reading) from 0 to 3 vol%
Gain Drift: +/- 2%fs/30 days
Oxygen:
 Range: 0 to 100 vol%
Detection Limit (2 X RMS noise): 20 ppm (1s averaging)
Gain Drift: +/- 2%fs/30 days
Carbon Dioxide:
 Range: 0 to 10 vol%
Detection Limit: 200 ppm (1s response time)
Accuracy: +/(0.10 vol% + 3% of reading)
Gain Drift: +/- 2%fs/30 days
More detailed specifications are available by request.
*Note: All specs have been quoted directly from original documentation supplied with the unit. BetterVIEW claims no responsibility for any errors or omissions in these factory-prepared specifications.
Other Lab Items
QUANTITY ITEM MODEL
3 Syscon Temperature Controller -
1 Fisher Scientific pH Monitor 915
1 Milton Roy Spectonic 21D
4 Linde Flow Controller 5853E
4 Linde Flow Controller 160502024117-10FRC
11 Linde Flow Controller 1605024133-21FRC
6 Linde Flow Controller 202-4117-4FRC
10 Linde Flow Controller 19FRC-202-4118
1 Linde Flow Monitor 202-4186-23FRM
4 Linde Flow Monitor FM4660A
1 Linde Flow Monitor FM4575
1 Brooks Flow Monitor 5860E
1 Brooks Flow Monitor 5836A1
1 Brooks Flow Monitor 5835D2
1 Blue M Lab Oven OV-8A

All reasonable offers will be considered. Contact Dave Ritter for more information.
